Client: TREK + BONTRAGER
Project: INSOLE SIZER TOOL
►Project Description
-
When Trek/Bontrager asked Axis Display Group to develop a simple tool for helping cyclists identify and select proper insoles, naturally our gears started turning. As cyclists ourselves, a few on the AXIS team understood exactly why proper foot support is essential for optimal on-bike comfort and performance. Bontrager designed the inForm BioDynamic Insoles exactly for this reason, and Trek retailers needed a way to precisely measure shoppers’ arch shape so associates could match them to the perfectly-sized insole.
►DESIGN OBJECTIVES
-
Develop a simple measuring tool for store associates and shoppers to determine their specific arch type
Provide an easy way to match arch type to the appropriate inForm BioDynamic Insole
Align with Bontrager brand
Mobile and lightweight
►The
Process
-

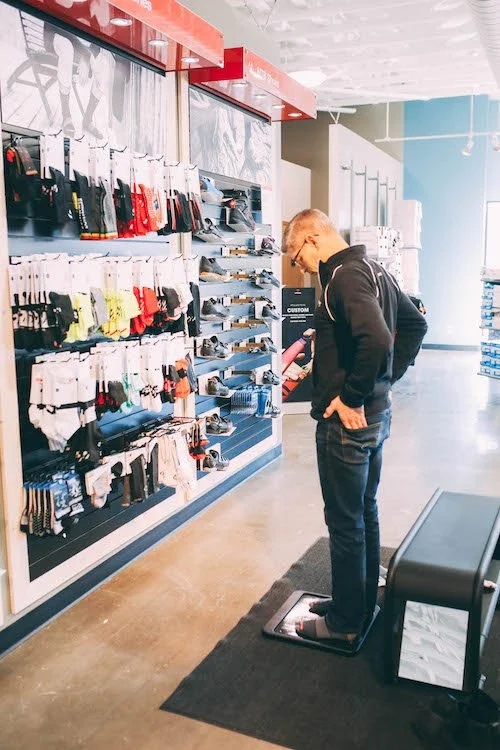

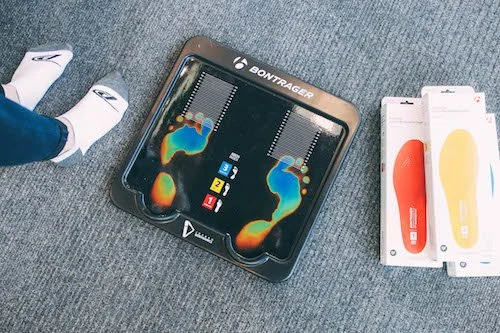

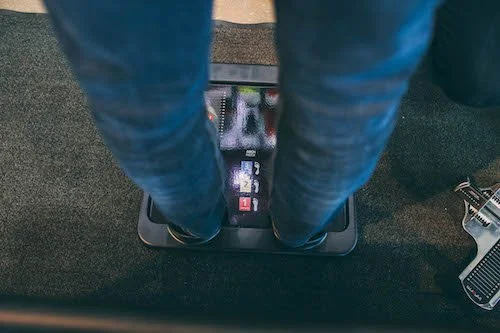

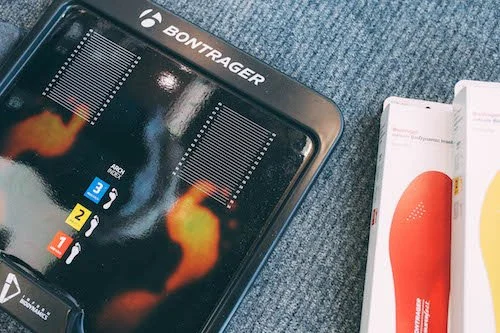

AXIS developed the “Insole Sizer” - a portable, hands-free, measuring tool. The Insole Sizer activates once an individual steps onto it. Heat sensitive material maps out the shopper’s foot size and arch shape. Once the individual steps off, an imprint of the foot remains, allowing shoppers to determine their arch type and foot size. Color coded graphics guide the shopper to match their color to the corresponding packaging on the inForm BioDynamic Insole.
►Materials & Components
-
Rigid foam rubber footbed
Printed thermochromic film
Vacuum-formed styrene with screen printed graphics
Powder coated MDF
►Challenges
-
Due to Trek’s greatly varying retail locations, Axis Display Group had to account for a wide temperature range when capturing heat imprint.
The tool was tested to ensure proper activation of the thermochromic material, no matter the ambient store temperature.
►Results
-
Provided Trek with the perfect tool to precisely measure cyclists’ arch type within 30 seconds or less, no matter the store environment
Color-coded Insole Sizer results matching the corresponding insole packaging, easily directs the shopper to the exact product they need, eliminating confusion and time spent trying on multiple insoles
Associates can remain hands free, while being assured the measurement is as accurate as if they were doing it themselves.
Current production = 1,000+ units.
